The Critical Role of Cavity Systems in New Zealand Construction
James Hardie Horizontal Cavity Batten NZ – Understanding the significance of the james hardie horizontal cavity batten begins with appreciating the fundamental role of a cavity system. In New Zealand’s building code, specifically under NZBC Clause E2/AS1 External Moisture, the use of a drained and ventilated cavity behind cladding is a mandated requirement for most wall assemblies. This isn’t a mere suggestion; it’s a foundational principle of modern weathertight design.
A cavity system creates a separation—a gap, typically 20mm—between the structural wall (including the building wrap or rigid air barrier) and the exterior cladding. This seemingly simple space is a multi-functional powerhouse. It acts as a primary line of defence against water ingress, providing an unimpeded path for any moisture that gets past the cladding to drain harmlessly away. Furthermore, it encourages air circulation, allowing the entire wall assembly to breathe and dry out, preventing the build-up of trapped moisture that can lead to rot, mould, and structural degradation.
Introducing the James Hardie Horizontal Cavity Batten: A Modern Solution
While the concept of a cavity is straightforward, its execution requires precision and the right materials. Traditional timber battens have long been the standard, but they come with inherent vulnerabilities. This is where the james hardie horizontal cavity batten emerges as a superior, specifically engineered alternative, designed to overcome the limitations of traditional methods and unlock new design possibilities.
The james hardie horizontal cavity batten is not just a product but a key component of a fully integrated James Hardie facade system. It is purpose-built to facilitate the creation of a reliable 20mm cavity, particularly for cladding products that are installed horizontally, such as the popular Linea™ Weatherboard. Its design and material composition offer a level of performance and durability that traditional materials struggle to match.
Composition and Material Science Behind the Batten
The strength of the james hardie horizontal cavity batten lies in its advanced material composition. It is manufactured from pre-sealed fibre cement, a robust composite material made from a blend of cement, ground sand, cellulose fibre, and water. This is the same proven technology used in James Hardie’s other trusted cladding and lining products.
This composition gives the batten several key properties:
- Dimensional Stability: Unlike timber, which can warp, twist, or swell when exposed to moisture, fibre cement is exceptionally stable. It maintains its shape and integrity, ensuring the cavity remains a consistent depth across the entire facade.
- Durability and Rot Resistance: The james hardie horizontal cavity batten is resistant to rot, moisture damage, and termites. This eliminates a common point of failure in traditional wall assemblies, contributing significantly to the longevity of the building envelope.
- Non-Combustibility: The batten is classified as non-combustible, adding an important layer of fire safety to the wall construction.
Beyond Timber: Key Advantages Over Traditional Battens
Choosing the james hardie horizontal cavity batten over conventional treated timber battens represents a significant upgrade in building practice. While timber is a familiar material, its organic nature presents challenges that a purpose-engineered solution can solve.
The advantages are clear and compelling:
- Moisture Management: Timber battens can absorb and hold moisture, potentially slowing down the drying process within the cavity. The sealed fibre cement construction of the Hardie batten does not absorb water, actively promoting faster drainage and drying.
- Consistency: Every james hardie horizontal cavity batten is manufactured to precise dimensions. This uniformity eliminates the on-site hassles of culling warped or undersized timber battens, leading to faster installation and a perfectly true and plumb cavity.
- Longevity: The inherent resistance to rot and decay ensures the integrity of the cavity system for the life of the building. This is crucial as the batten is a critical structural element supporting the cladding.
- System Assurance: When used as part of a complete James Hardie system—for example, with RAB™ Board, Hardie™ Flex Hit-and-Miss Vents, and Linea™ Weatherboard—the james hardie horizontal cavity batten comes with the backing of a single, trusted manufacturer’s warranty. This provides architects, builders, and homeowners with unparalleled peace of mind.
Enabling Horizontal Cladding with Ventilated Precision
Perhaps the most significant role of this product is revealed in its name: “Horizontal Cavity Batten”. Traditional vertical cavity battens work well for vertically oriented cladding, but they create a problem for horizontal weatherboards. Fixing horizontal cladding over vertical battens can trap moisture on the top edge of each batten, impeding drainage.
The james hardie horizontal cavity batten is specifically designed with strategically placed, large pre-formed openings. These openings ensure that even when the batten itself is installed vertically, it allows for both vertical drainage and horizontal airflow across the wall. This innovative design is the key to creating a fully functional, smart ventilated cavity behind horizontal cladding systems, ensuring moisture can escape and air can circulate freely, which is the cornerstone of a healthy building envelope.
This innovation represents a significant advancement in moisture management and facade performance for New Zealand’s demanding climatic conditions. The James Hardie Horizontal Cavity Batten ensures that horizontal cladding systems — such as weatherboards or shiplap panels — perform just as effectively as their vertical counterparts in terms of drainage and ventilation. By integrating pre-engineered slots and weep paths into the batten’s profile, it promotes continuous airflow behind the cladding and prevents water from becoming trapped, even during prolonged exposure to wind-driven rain.
The result is a system that maintains the integrity of the wall structure, significantly reducing the risk of condensation, mould growth, and the dreaded “leaky building” issues that have historically plagued poorly ventilated facades. Builders and designers benefit from a compliant, code-ready solution that simplifies installation while enhancing the longevity of the building envelope.
In addition to its functional excellence, the Horizontal Cavity Batten aligns perfectly with modern construction efficiency. It is lightweight, easy to handle, and compatible with a wide range of James Hardie cladding products — from Linea™ Weatherboard to Axon™ Panel. This versatility allows for design freedom without sacrificing performance. Ultimately, it delivers what every builder strives for: a breathable, durable, and weathertight wall system that embodies both smart engineering and long-term reliability.

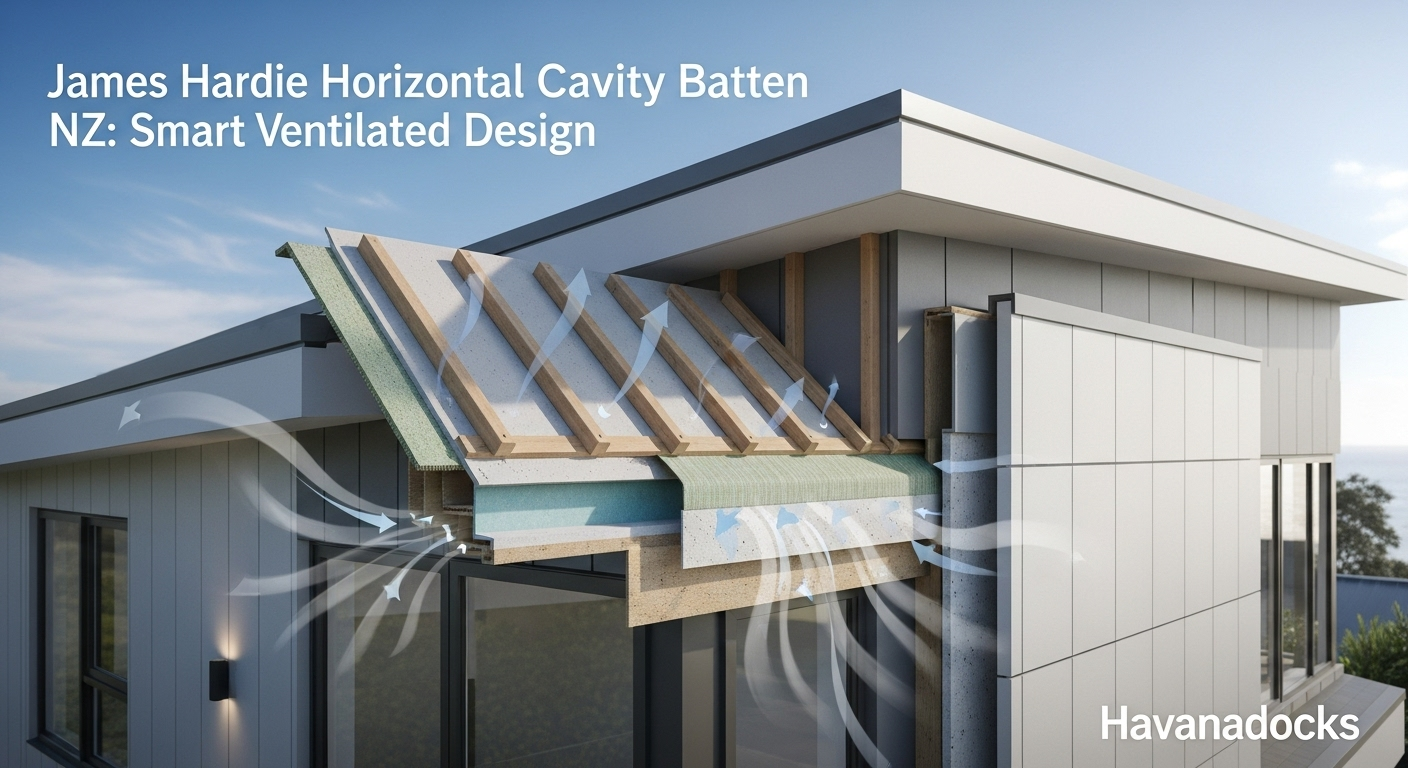

Dissecting the Smart Ventilated Design: How It Works
The term “Smart Ventilated Design” refers to a system that intelligently manages environmental forces like water and air pressure. The cavity created by the james hardie horizontal cavity batten is not a dead air space; it’s an active, high-performance climate control zone for the wall. Its effectiveness can be understood through the well-established “4 Ds” of weathertightness.
A robust building envelope must effectively manage water by incorporating principles of Deflection, Drainage, Drying, and Durability. The james hardie horizontal cavity batten system excels in all four areas.
Deflection is the first and most crucial line of defence. The James Hardie cladding panels, when installed over the horizontal cavity batten, act as a durable outer skin that deflects the majority of rain, wind, and debris away from the wall structure. Their precision jointing systems and tight tolerances minimise opportunities for water to penetrate in the first place.
Next is Drainage — the engineered openings and continuous cavity formed by the horizontal batten provide a clear path for any incidental water that gets behind the cladding to flow downward and out through the designated exit points. This eliminates the risk of trapped moisture, which can otherwise lead to decay or structural damage over time.
The third principle, Drying, is where the “smart” element truly shines. The strategically designed perforations and air gaps within the batten system encourage cross-ventilation. As air moves freely through the cavity, it accelerates evaporation and helps maintain a dry, stable environment behind the cladding.
Finally, Durability ensures that all these functions continue to perform effectively over the building’s lifespan. By combining non-combustible, moisture-resistant materials with clever design detailing, the James Hardie Horizontal Cavity Batten system forms a resilient and intelligent wall assembly that protects, breathes, and endures — even in New Zealand’s most challenging weather conditions.
The Four D’s: Deflection, Drainage, Drying, and Durability
- Deflection: The primary role of any cladding is to be the first line of defence, deflecting the vast majority of rain and wind. James Hardie cladding products, like Linea™ Weatherboard or Stria™ Cladding, are designed to do this effectively.
- Drainage: No cladding system is perfectly waterproof. Inevitably, under certain conditions like wind-driven rain, some moisture will penetrate the outer layer. This is where the cavity formed by the james hardie horizontal cavity batten becomes vital. It provides a clear, 20mm path for this water to drain down the face of the rigid air barrier or building wrap and exit safely at the base of the wall.
- Drying: This is the “smart” part of the design. The cavity is not just for drainage; it’s for ventilation. Air is drawn in through vents at the bottom of the wall and can circulate upwards, exiting through vents at the top. This constant, gentle airflow, driven by convection (the stack effect), actively removes residual moisture and water vapour from the wall assembly. This convective drying is crucial for preventing condensation and keeping the structural framing dry.
- Durability: The entire system is built to last. By using durable, rot-resistant materials like the fibre cement james hardie horizontal cavity batten and RAB™ Board, the system’s ability to manage moisture is not compromised over time. This ensures the building remains weathertight and healthy for decades.
Enhancing Building Envelope Performance and Health
A well-ventilated cavity system does more than just keep water out. It fundamentally improves the overall health and performance of the building envelope, creating a more comfortable, energy-efficient, and resilient structure. The role of the james hardie horizontal cavity batten is central to achieving these enhanced outcomes.
By ensuring the wall can dry out effectively, the system protects the timber framing from decay and the insulation from becoming saturated with moisture. Wet insulation has a drastically reduced thermal performance (R-value), meaning a damp wall can lead to higher energy bills and a less comfortable indoor environment.
Superior Moisture Management and Weathertightness
The combination of a rigid air barrier like James Hardie’s RAB™ Board and the cavity created by the james hardie horizontal cavity batten offers a best-in-class solution for weathertightness. The RAB Board provides a solid, secondary weather-resistant surface, and the cavity ensures that any moisture reaching this surface is dealt with swiftly and efficiently.
This two-stage approach provides a level of redundancy that is essential in New Zealand’s harsh maritime climate. It moves the pressure point for water management from the cladding joints alone to the entire integrated system, making the building far more resilient to leaks.
Pressure Equalisation: The Science of Keeping Water Out
One of the more sophisticated principles at play in a ventilated cavity is pressure equalisation. Much of the water driven into wall assemblies is forced in by wind, which creates a pressure difference between the outside and the inside of the cladding.
A ventilated cavity allows the air pressure within the cavity to quickly equalise with the pressure outside. When the pressure is equal on both sides of the cladding, the primary driving force pushing water through small gaps and joints is neutralised. This scientific principle dramatically reduces the amount of water that ever gets past the cladding face, making the drainage and drying functions even more effective. The james hardie horizontal cavity batten system is designed to facilitate this crucial airflow for equalisation.
Installation and System Compatibility: A Practical Guide
The performance of any building product is directly tied to its correct installation. James Hardie provides comprehensive technical literature and support to ensure that the james hardie horizontal cavity batten is installed as part of a robust and compliant system.
Installation is typically straightforward for qualified builders. The battens are fixed vertically over the building wrap or RAB™ Board, directly into the wall framing studs at specified centres (e.g., 400mm or 600mm). The horizontal cladding is then fixed through the batten and into the wall framing, ensuring a secure connection.
Core Installation Principles
Several core principles must be followed to ensure the system’s integrity:
- Ventilation at Top and Bottom: The cavity must be open to the outside at the top and bottom of the wall to allow for airflow. This is achieved using products like the Hardie™ Flex Hit-and-Miss Vent or a vermin-proof mesh.
- Continuity of Cavity: The cavity must be continuous and free from obstruction. Care must be taken around windows, doors, and penetrations to ensure drainage paths are maintained.
- Correct Fixings: Using the specified nails or screws for both fixing the batten to the frame and the cladding to the batten is essential for structural performance and durability.
- Adherence to Technical Specifications: Always follow the latest James Hardie technical specification manual for the specific cladding product being installed. This will provide detailed guidance on batten spacing, fixing requirements, and detailing for junctions and corners.
Synergy with James Hardie Cladding Systems
The james hardie horizontal cavity batten is not a standalone product; it is designed to integrate seamlessly with a wide range of James Hardie’s premium cladding solutions. This system-based approach ensures that all components work together harmoniously.
It is the specified cavity batten for use with:
- Linea™ Weatherboard: The classic, deep-shadow weatherboard look is perfected with the underlying performance of a fully ventilated cavity.
- Stria™ Cladding: For a modern, rendered block aesthetic with clean horizontal lines, the batten system provides the essential weathertightness backbone.
- Axon™ Panel (in specific horizontal applications): While typically a vertical panel, certain designs may use Axon™ Panel horizontally, where a ventilated cavity is still paramount.
Compliance with the New Zealand Building Code (NZBC)
A key advantage of using a complete James Hardie system anchored by the james hardie horizontal cavity batten is the streamlined path to compliance. James Hardie products are rigorously tested and appraised by BRANZ, ensuring they meet or exceed the requirements of the New Zealand Building Code.
When installed in accordance with the technical literature, a wall assembly using the james hardie horizontal cavity batten is a clear and accepted solution under NZBC Clause E2/AS1. This gives architects the confidence to specify it and councils the evidence to approve it, reducing consent delays and providing certainty for the entire project team.
Conclusion: The Backbone of High-Performance Facades
In the quest for buildings that are not only beautiful but also healthy, durable, and resilient, the details matter. The components hidden behind the final finish are often the most critical to a building’s long-term success. The james hardie horizontal cavity batten is a prime example of such a component—an unsung hero of the modern building envelope.
It represents a thoughtful evolution from traditional methods, replacing a vulnerable material with a precisely engineered, highly durable alternative. By enabling a smart, ventilated cavity design, it provides an unparalleled level of moisture management, enhances the thermal performance of the wall, and ensures compliance with New Zealand’s stringent building standards. For architects, builders, and homeowners seeking the highest level of performance and peace of mind, incorporating the james hardie horizontal cavity batten into their project is not just a smart choice; it’s a foundational step towards building better, healthier homes for the future.
